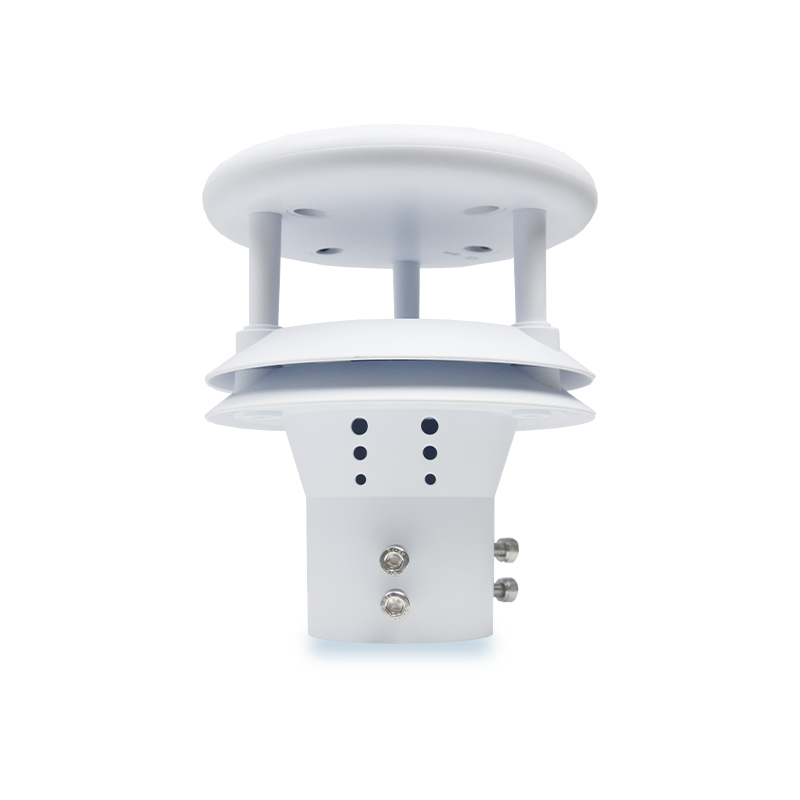

Piezoelectric Rain Gauge Maintenance-Free Measurement Utilizing PVDF Films and AI Neural Networks—No Mechanical Parts Required

Piezoelectric Rain Gauge employs a PVDF piezoelectric film as its rain-sensing element, utilizing an embedded AI neural network to distinguish rain droplet signals and prevent false triggers caused by interference from grit, dust, vibration, and similar factors. The device features a completely solid-state, integrated design with no mechanical components or exposed parts. It boasts a measurement accuracy of ≤±4%, a resolution of 0.01 mm, and a power consumption of just 0.12 W, making it ideally suited for applications such as automated hydrological reporting systems, flood control dispatch, and reservoir water management.

Piezoelectric Rain Gauge is a rainfall measurement device operating on the principle of the piezoelectric effect; its core sensing element is a PVDF piezoelectric film. When a rain droplet strikes the sensor surface, the droplet's momentum is converted into mechanical vibrations within the piezoelectric film. The film then transforms these vibrations into electrical charge signals, which are processed by internal circuitry to generate voltage waveforms corresponding to the weight of each droplet, thereby enabling the calculation of total rainfall accumulation and rainfall intensity. As rain droplets descend, they are subject to the forces of gravity and air resistance; by the time they reach the ground, their velocity tends to stabilize at a constant rate. Based on the momentum theorem (P=mv), the weight of a droplet can be inversely deduced by measuring the impact force, thereby enabling the precise, continuous calculation of rainfall accumulation.

Compared to traditional tipping-bucket rain gauges, Piezoelectric Rain Gauge features a fully solid-state, integrated structure devoid of any moving mechanical parts, thereby physically eliminating the risks of wear and jamming. The sensor contains no exposed components; its curved contact surface design prevents water stagnation while effectively filtering out interference signals introduced by environmental factors such as leaves, dust, and insects. Select models incorporate embedded AI neural network algorithms to perform real-time identification and classification of rain droplet impact waveforms, further reducing the rate of false triggers caused by non-rainfall factors such as grit, dust, and vibration.

In terms of measurement performance, Piezoelectric Rain Gauge offers a rainfall intensity measurement range extending from 0 to 4 mm/min (or higher), a typical resolution of 0.01 mm, and a measurement accuracy within ±4%. With a sampling interval of less than one second, the device is capable of precisely recording the start and end times of rainfall events, accurate to the nearest second. The device's power consumption is maintained within the range of 0.12W to 0.25W, enabling it to operate autonomously in remote, unattended field environments when paired with a solar power supply system. It features an ingress protection rating of IP65 or higher—with select models reaching IP68—and operates across a wide temperature range of -40°C to +85°C, allowing it to withstand complex environmental conditions characterized by extreme cold, high temperatures, and high humidity.

In terms of structural design, the Piezoelectric Rain Gauge features a compact, lightweight, and integrated form factor. The device incorporates a built-in automatic leveling function, eliminating the need for manual on-site calibration after installation. Regarding data transmission, it supports an RS485 interface utilizing the Modbus protocol, thereby meeting the data backhaul requirements of diverse application scenarios.

In terms of application fields, the Piezoelectric Rain Gauge is widely deployed in automated hydrological monitoring and reporting systems, flood control dispatch, reservoir water management, geological hazard monitoring, road and traffic meteorology, smart city initiatives, and intelligent agricultural irrigation systems. Select models have already been deployed in over 1,000 units across multiple provinces to remotely monitor critical data—such as precipitation volume, intensity, and start/end times—providing essential foundational support for flood control, drought relief, and water supply dispatch operations. Furthermore, its maintenance-free design significantly reduces the operational and maintenance costs associated with remote field monitoring stations, as it requires no periodic cleaning of mechanical components or recalibration of measurement accuracy.
